EZ – 6090 UV flatbed printer
EZ-6090 is a UV flatbed printer, which has a wide range of printing applications.
This is a professional high-precision UV flatbed printer (realized through UV ink and photocuring principles), designed for commercial custom printing and small-batch production scenarios. The equipment features stable performance and reliable output quality, with flexible optional configurations to meet various printing requirements.
Configuration
- Print Head: EPSON I1600-U1/I3200-U1
- Max Print Size: 600mm*900mm
- Max Print Speed: 8m2/h
- Ink Type: ECO-UV Curing Ink
- Print Mode: C,M,Y,K+W+Varnish
Key features
- Standard visual positioning function.
- Cylinder printing device can be installed.
- High-resolution printing.
- 3D embossed varnish printing.
- Can print objects with a maximum thickness of 180 mm.
Unlimited creativity
Stick it casually with printing
Maximum print width
600x900mm
Simple operation
EAZcor's technical can do it
color
Cyan
Magenta
Yellow
Black
White
Varnish
Print head
- Model : I1600-U1
- Ink Types : UV ink
- Size(width x depth x height)(mm) : 69.1x 59.4 x 35.6 mm
- Weight : 80 g
- Nozzle Numbers : 1600
- Nozzle pitch/nozzle row : 1/300 inch
- Nozzle Row : 4 rows
- Nozzle Resolution : 300 npi /row 600 npi/2 rows
- Max. number of colour inks : 4 colours
- Effective print width : 33.8 mm (1.33 inches)
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release : 5 pl at 43.2 kHz
- 3 gray release : 6, 12.5 pl at 21.6 kHz
- 4 gray release : 3.8, 6.2, 9.3 pl at 21.6 kHz
- Viscosity range : 5-7 mPa･s
- Positioning Mechanism : Reference hole

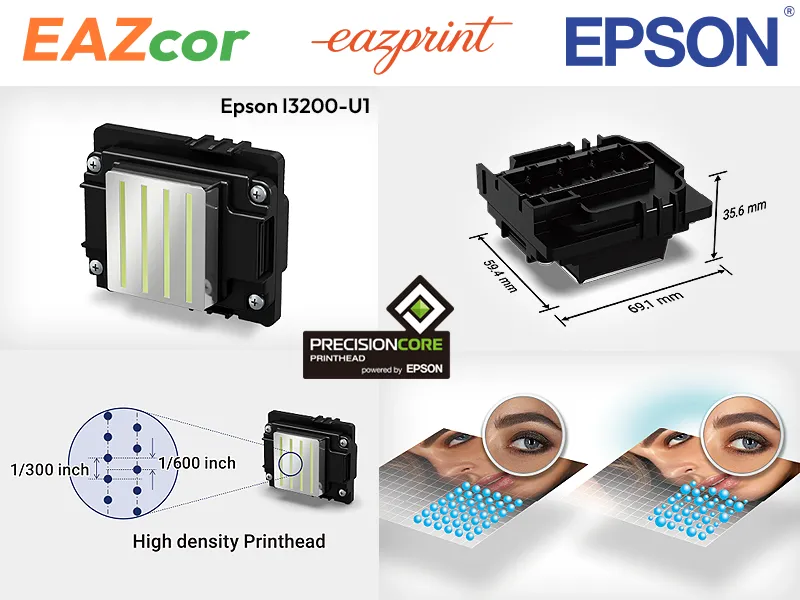

- Model：I3200-U1
- Ink Types：UV ink
- Size (width x depth x height) (mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5pl 43.2kHZ
- 3 gray release: 6,12.5pl 21.6kHZ
- 4 gray release: 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range: 5-7 mPa･s
Specifications
Printer size
- Length : 1696mm
- Width : 1595mm
- Height : 719mm
- Weight : 194kg
Paking size
- Length :1830mm
- Width : 1750mm
- Height : 1020mm
- Weight : 200kg
Work environment
- Temperature: 40 – 100 ° C
- Humidity: 20 – 80%
Print resolution / Speed
- 4 pass : 5 m²/h
- 6 pass : 3 m²/h
- 8 pass : 2 m²/h
RIP software
- Flexi
- Maintop
- Riin
Power
- 220v for drawing
- 450v for front,middle and rear heading
Valtage
- 16A
- AC 100V ±10%
- AC 220V ±10%
- 50HZ ±1
- 60HZ ±1
Details

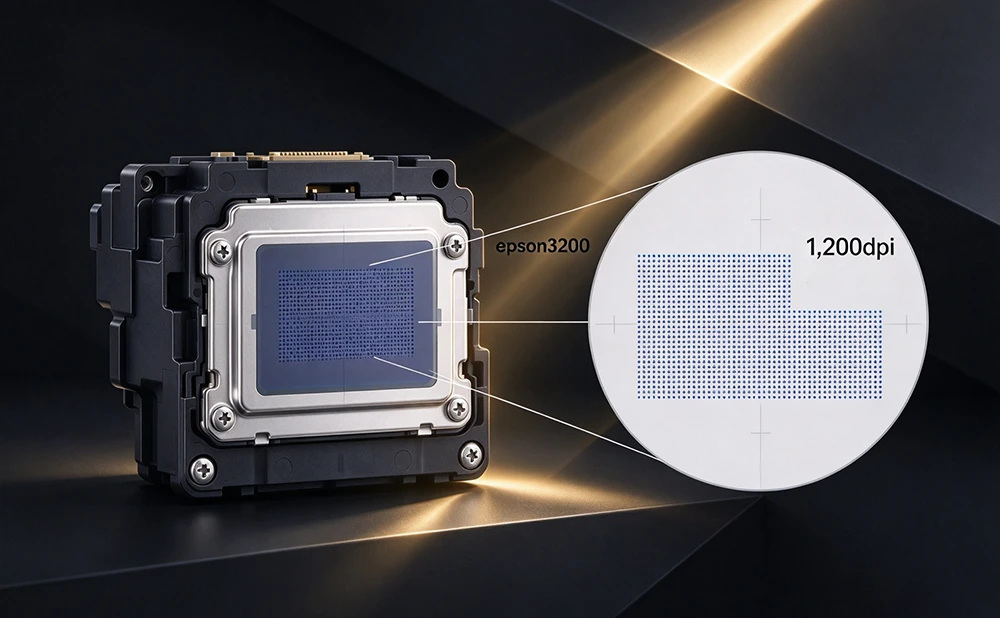

High-resolution printout
Print precision up to 720*2400 dpi, the image quality is delicate, high ink drop printing can be realized, the jetting force is strong, and the performance is stable.

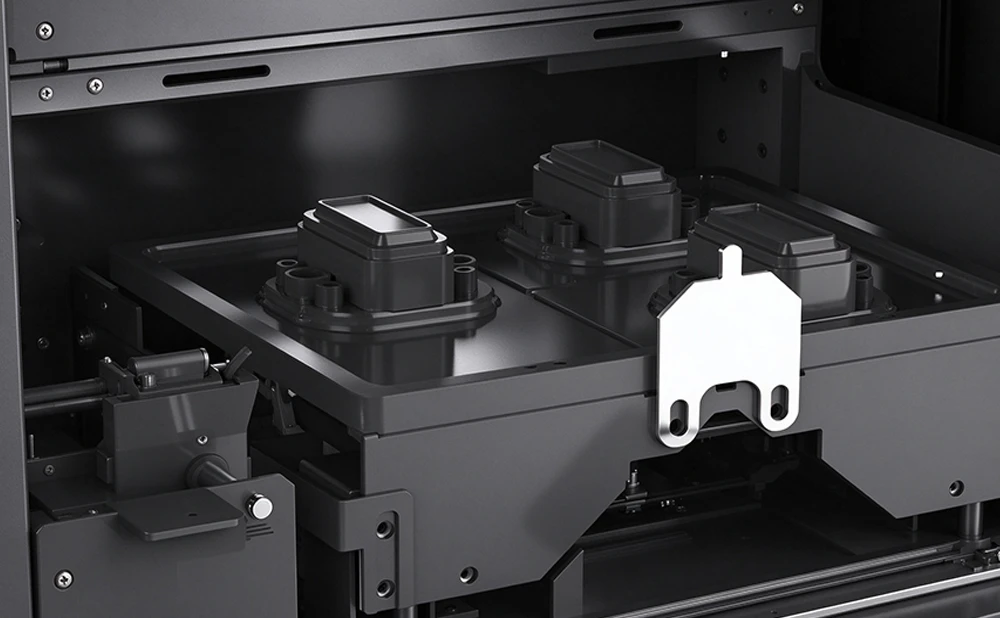

Automatic lifting ink capping station
Driven by a motor, the position of the sealing head is precisely controlled, and the nozzle is intelligently protected from external damage.

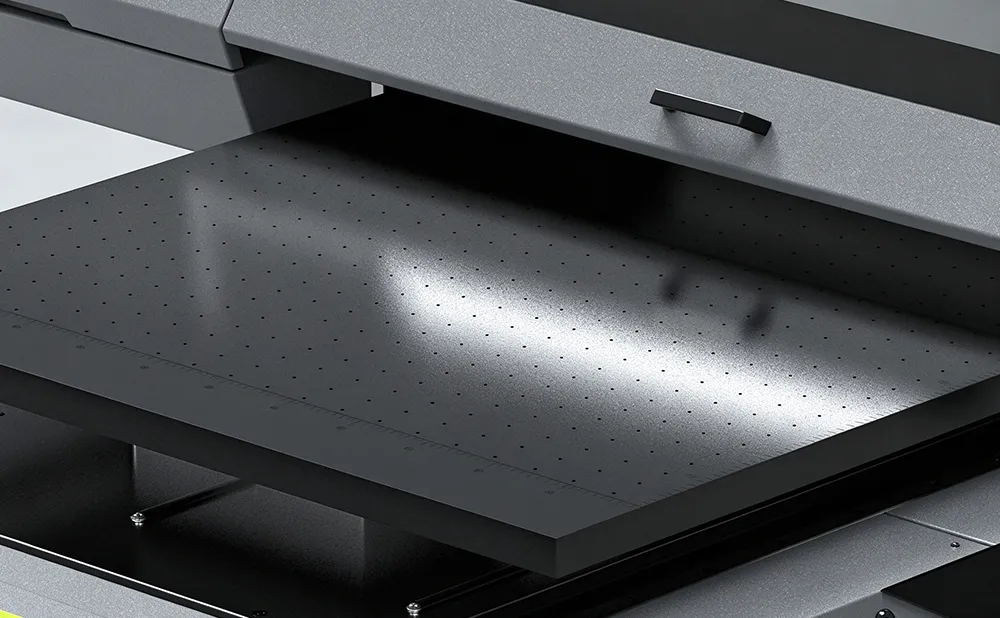

High-precision vacuum suction platform
Adsorption platform made of high-strength aluminum alloy plate, the turbo fan under the platform absorbs air through the holes to fix the material.

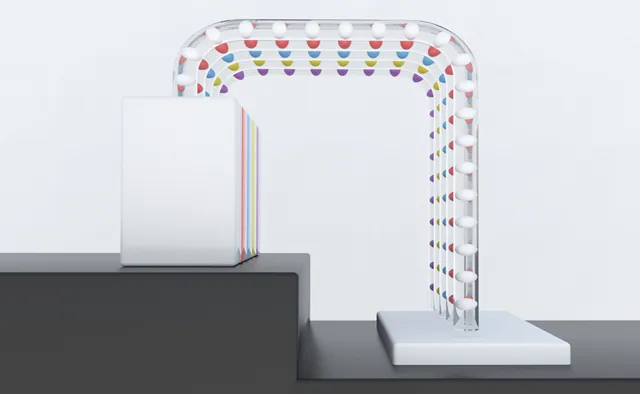

Siphon ink supply system
Ink supply is smooth and stable without splashing ink droplets, ensuring the perfect output of printing jobs.

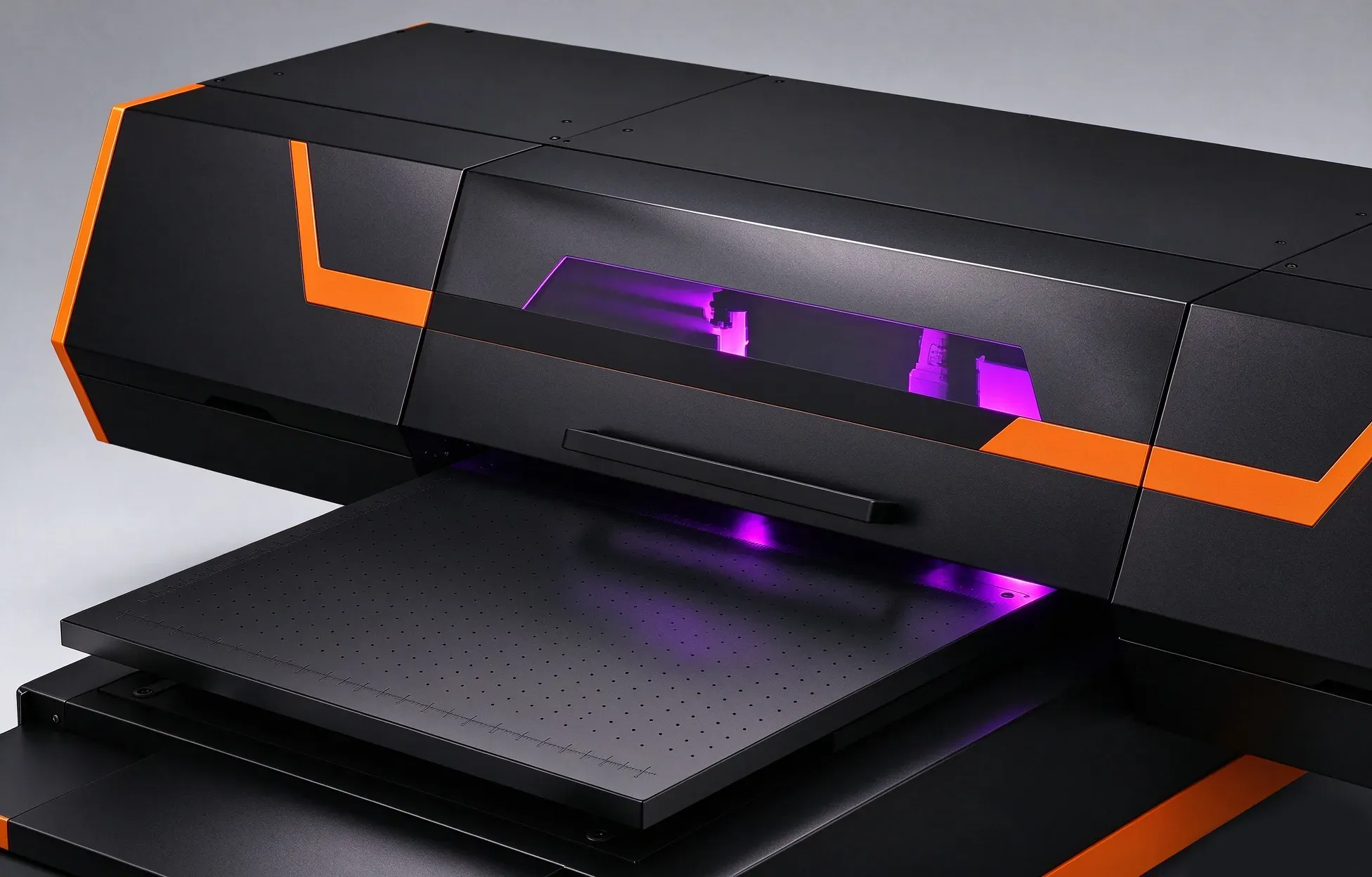

UV Lamp Protective Cover
Emergency stop when opening the cover during work, Protect eyes from UV light.
