EZ – S1600e sublimation printer
EAZcor print 1.6m Sublimation Printer for Industrial Fabric Printing with High-Speed Color Transfer Output.
This E-series is a light-designed sublimation printer. Compared with industrial production, it is more suitable for home-based production, and you can use it to handle small orders.
Configuration
- Product model : EZ – S1600e
- Print head : EPSON i3200-A1
- Number of print heads : 2
- Max print size : ≤1600mm
- Printing resolution : Maximum 2400dpi
- Ink colors : 4 / 8 Colors ( CMYK+LC,LM,LK,LLK )
- Ink type : Dye sublimation ink
- Max printing speed : 60㎡/h

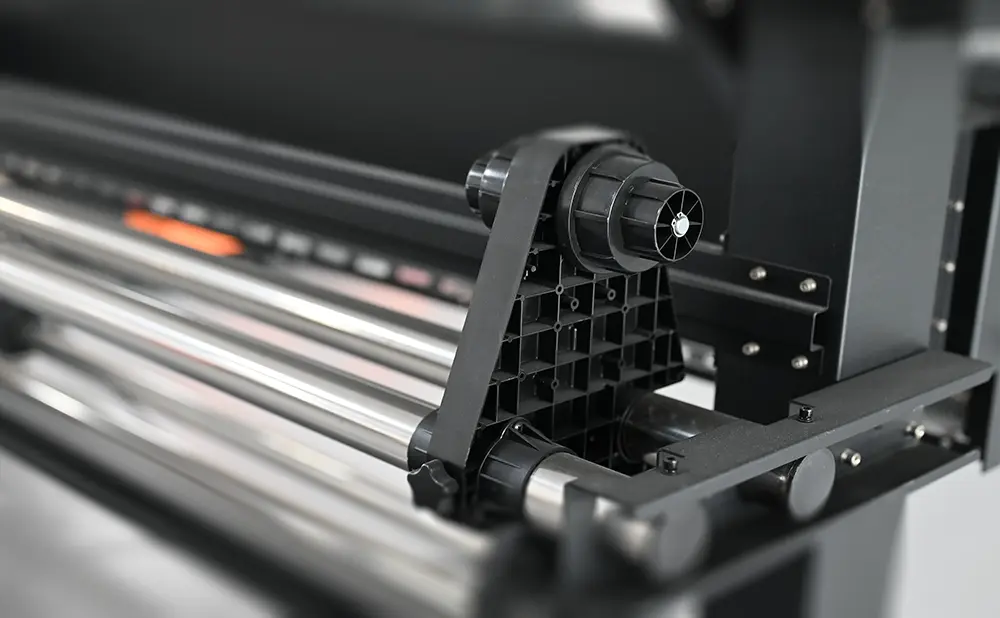

- Receiving system : Ordinary retractable material

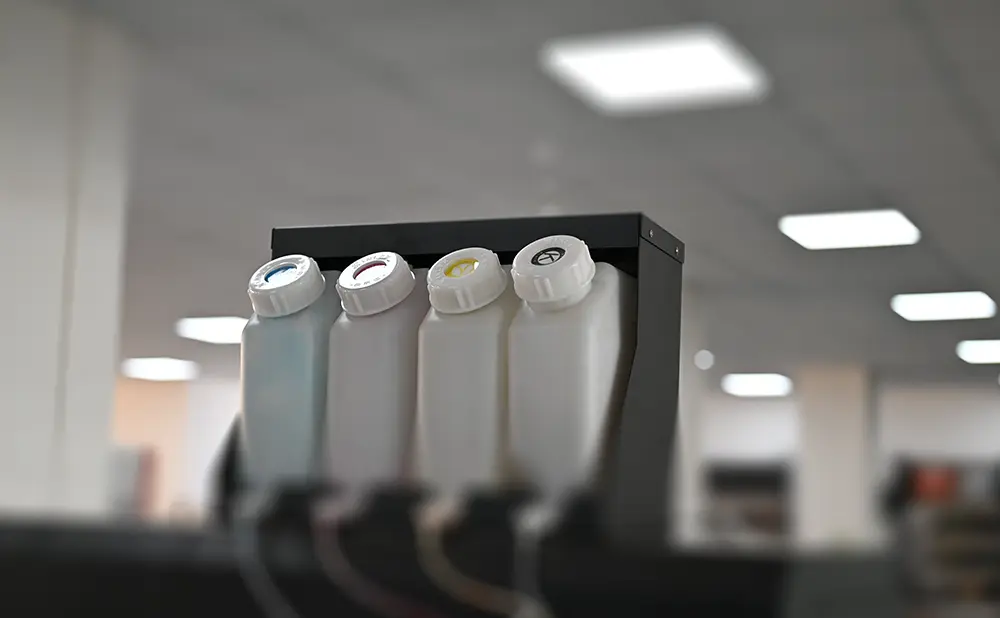

- Ink supply method : Siphon, positive pressure ink bag
- Warranty : 12 months (Ink system, printheads and ink capping are not covered)
- International shipping : DHL,FedEx,By Air,By Sea
Key features

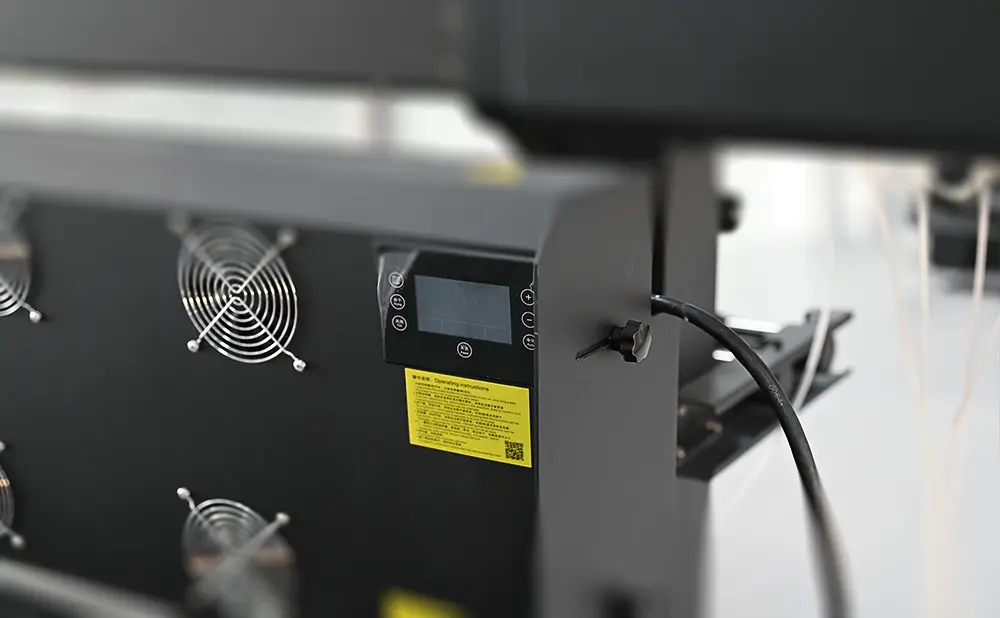

- Heating control panel, better control effect, convenient power adjustment.
- stable ink supply system to ensure amazing printing speed.
- Control System: Printer Manager
Rich colors
4 / 8
Maximum print width
1600mm
Simple operation
EAZcor print's technical can do it
Print head
- Model：I3200-A1
- Ink Types：Water based ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 6pl ( 43.2kHZ )
- 3 gray release: 6.3 , 12.3 pl 21.6kHZ
- 4 gray release: 3.8,6.1,9.4 pl ( 21.6kHZ )
- Viscosity range: 3~4 mPa･s
color
Cyan
Magenta
Yellow
Black
Light Cyan
Light Magenta
Light Black
Light Light black
Specifications
Printer size
- Length : 3100mm
- Width : 1004mm
- Height : 1496mm
- Weight : 400kg
Standard components
- Ordinary collection and discharge system
- Automatic moisturizing and cleaning system

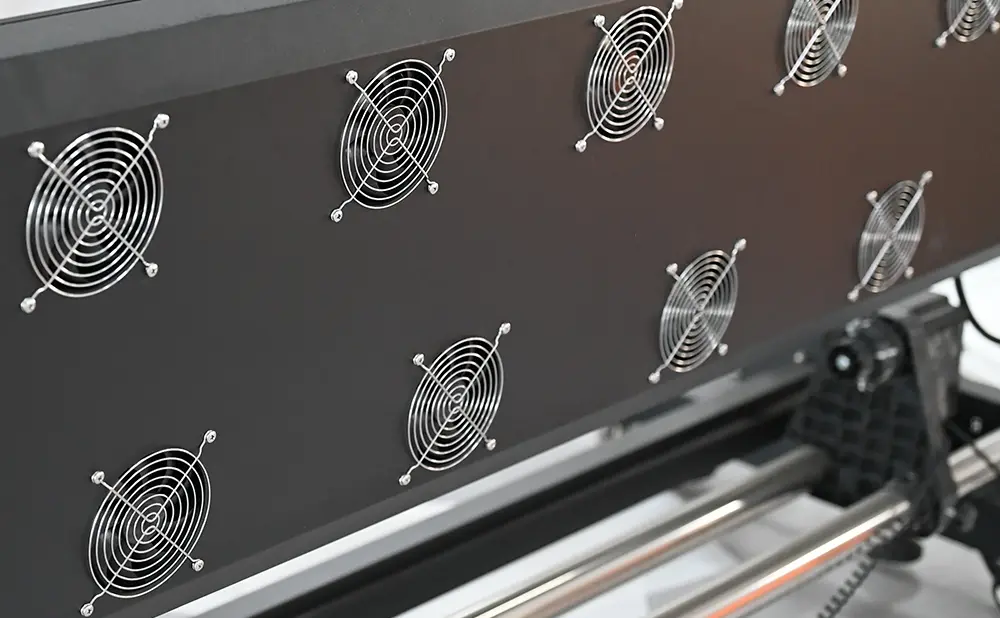

- External automatic control air heat dryer
- Ink level alarm system
Work environment
- Temperature: 40 – 100 ° C
- Humidity: 20% – 80%
Print resolution / Speed / dpi
- 4 pass: 50m²/h(360×1200dpi)
- 6 pass: 40m²/h (720×1200dpi)
- 8 pass: 30m²/h (720×1200dpi)
RIP software
- Maintop
- Flexi
Power / Voltage
- 2500W AC220V+/-5%, 16A, 50/60 HZ
Accessories
- USB cable
- Media clamp
- Manual
- Drian bottle
- Ink cartridge
- RIP software
- Etc.
Detail
