EZ – U1600 UV printer
1600 UV Printer for Large Format UV Flatbed Printing and Industrial Advertising Production.
EAZcor 1.6m width wide format UV roll-to-roll printer, with multi-row high-precision UV printheads, supporting high-speed and high-resolution large-format UV printing. Perfect for outdoor advertising, signage, and large-format decorative printing.
Configuration
- Product model : 1600 UV printer
- Print head : EPSON i3200-U1
- Number of print heads : 2
- Max print size : ≤ 1600mm
- Printing resolution : Maximum 2400dpi
- Ink color : 6 colors ( CMYK+W+Varnish )
- Ink type : LED UV ink
- Max printing speed : 14 m²/h

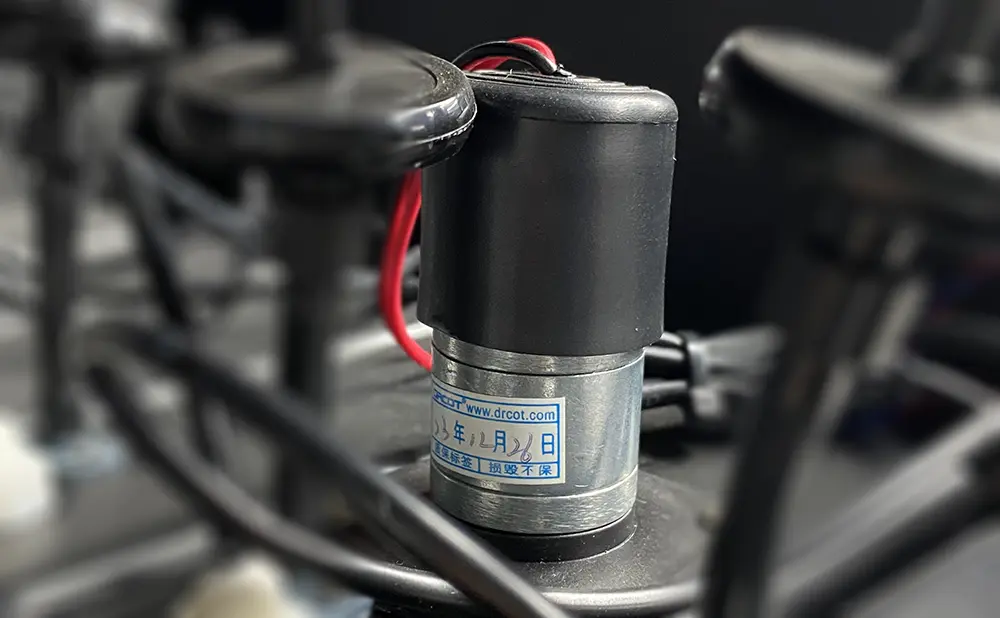

- Ink supply method : Siphon, positive pressure ink bag
- Warranty : 12 months (Ink system, printheads and ink capping are not covered)
- International Shipping : DHL,FedEx,By Air,By Sea
Key features
- The surface plane can be transferred, and the transfer effect is good.
- Print nozzles to achieve white + CMYK + varnish multi-layer printing.
- Support hot stamping and hot silver, can achieve high gloss and high luxury custom effect.
- Printing with a sense of hierarchy, 3D relief, visibility, and tangibility.
- Efficient printing, stable output, cutting resistance, non-fading.
Unlimited creativity
Stick it casually with printing
Maximum print width
1600mm
Simple operation
EAZcor's technical can do it
color
Cyan
Magenta
Yellow
Black
White
Varnish

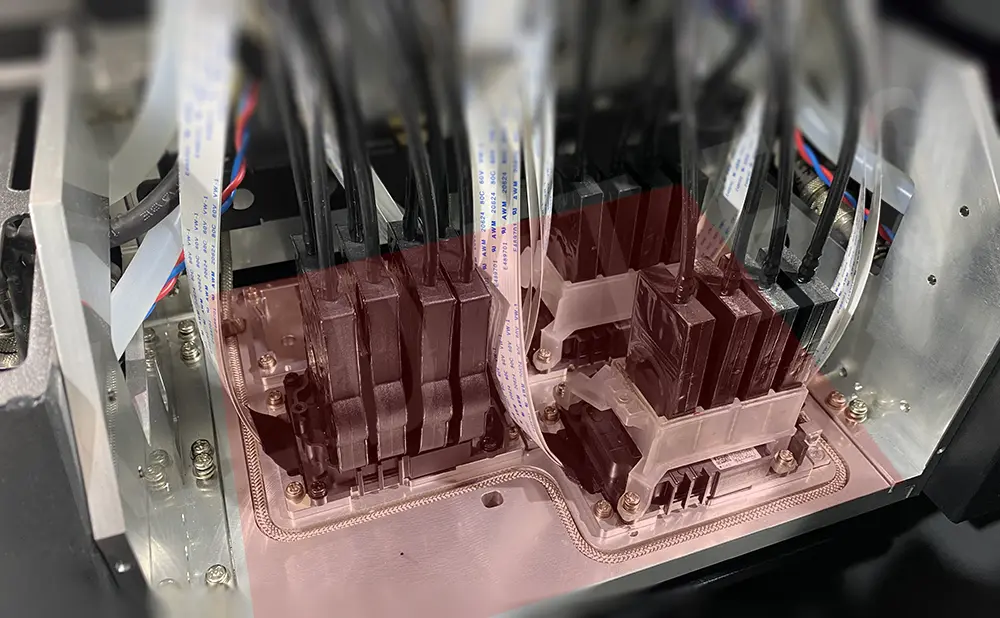

Print head
- Model ：I1600-U1
- Ink Types ：UV ink
- Size(width x depth x height)(mm): 69.1x 59.4 x 35.6 mm
- Weight：80 g
- Nozzle Numbers：1600
- Nozzle pitch/nozzle row: 1/300 inch
- Nozzle Row: 4 rows
- Nozzle Resolution：300 npi /row 600 npi/2 rows
- Max. number of colour inks: 4 colours
- Effective print width：33.8 mm (1.33 inches)
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5 pl at 43.2 kHz
- 3 gray release: 6, 12.5 pl at 21.6 kHz
- 4 gray release:3.8, 6.2, 9.3 pl at 21.6 kHz
- Viscosity range: 5-7 mPa･s
- Positioning Mechanism：Reference hole
- Model：I3200-U1
- Ink Types：UV ink
- Size (width x depth x height) (mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5pl 43.2kHZ
- 3 gray release: 6,12.5pl 21.6kHZ
- 4 gray release: 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range: 5-7 mPa･s
Specifications
Printer size
- Length : 3010mm
- Width : 740mm
- Height : 1420mm
- Weight : 280kg
Paking size
- Length : 3030mm
- Width : 760mm
- Height : 1430mm
- Weight : 300kg
Work environment
- Temperature: 40 – 100 ° C
- Humidity: 20 – 80%
Print resolution / Speed / dpi
- 4 pass: 14m²/h ( 720×1200 )
- 6 pass: 10m²/h ( 720×1200 )
- 8 pass: 7m²/h ( 720×1200 )
RIP software
- Flexi
- Maintop
- Riin
Power
- 220v for drawing
- 450v for front,middle and rear heading
Valtage
- 10A
- AC 100V ±10%
- AC 220V ±10%
- 50HZ ±1
- 60HZ ±1
