Compact UV DTF printer with a maximum supported width of 302 mm. It supports long‑hour printing, with high‑capacity ink cartridges working in perfect coordination with the front‑and‑back motor‑driven take‑up and unwinding system. It is mainly used for producing crystal labels.

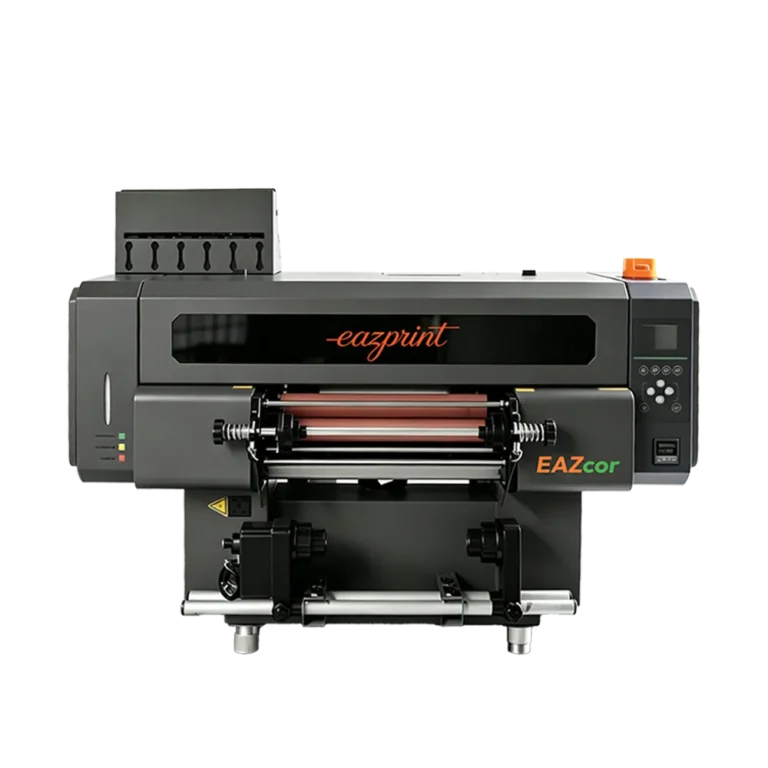

EZ – U300 UV DTF printer
EAZcor Model 300 UV DTF Printer, suitable for commercial UV crystal labels, ideal for low‑cost entrepreneurship and mass production.
Configuration
- Product model : EAZcor U302/303 UV printer
- Print head : EPSON i3200-U1
- Number of print heads : 2/3
- Max print size : ≤ 310mm
- Printing resolution : Maximum 2400dpi
- Ink color : 6 colors ( CMYK+W+Varnis )
- Ink type : LED UV ink
- Max printing speed : 5 m²/h
- Ink supply method : Siphon, positive pressure ink bag
- Warranty : 12 months (Ink system, printheads and ink capping are not covered)
- International Shipping : DHL,FedEx,By Air,By Sea
Key features
- The surface plane can be transferred, and the transfer effect is good.
- Print nozzles to achieve white + CMYK + varnish multi-layer printing.
- Support hot stamping and hot silver, can achieve high gloss and high luxury custom effect.
- Printing with a sense of hierarchy, 3D relief, visibility, and tangibility.
- Efficient printing, stable output, cutting resistance, non-fading.
Unlimited creativity
Stick it casually with printing
Maximum print width
310mm
Simple operation
EAZcor's technical can do it
Colors
Cyan
Magenta
Yellow
Black
White
Varnish
Red
Green
Blue
Orange
Print head

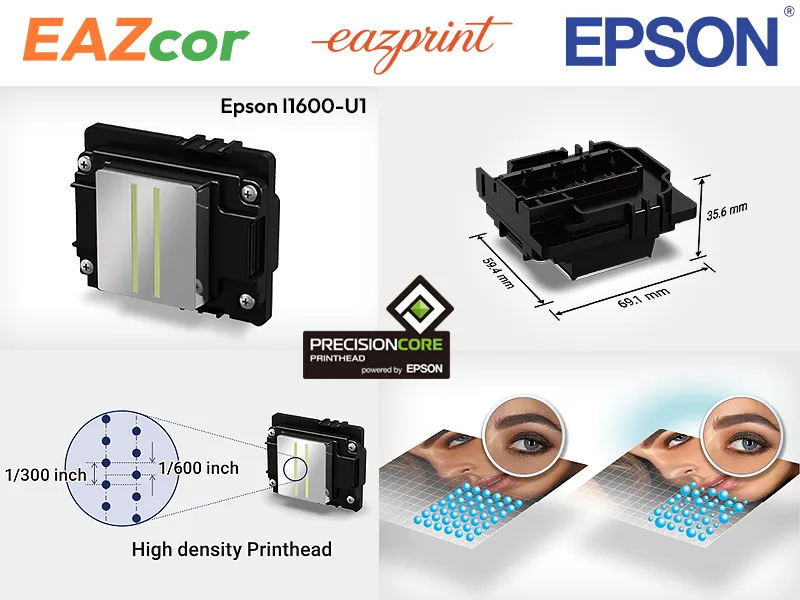

- Model ：I1600-U1
- Ink Types ：UV ink
- Size(width x depth x height)(mm): 69.1x 59.4 x 35.6 mm
- Weight：80 g
- Nozzle Numbers：1600
- Nozzle pitch/nozzle row: 1/300 inch
- Nozzle Row: 4 rows
- Nozzle Resolution：300 npi /row 600 npi/2 rows
- Max. number of colour inks: 4 colours
- Effective print width：33.8 mm (1.33 inches)
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5 pl at 43.2 kHz
- 3 gray release: 6, 12.5 pl at 21.6 kHz
- 4 gray release:3.8, 6.2, 9.3 pl at 21.6 kHz
- Viscosity range: 5-7 mPa･s
- Positioning Mechanism：Reference hole

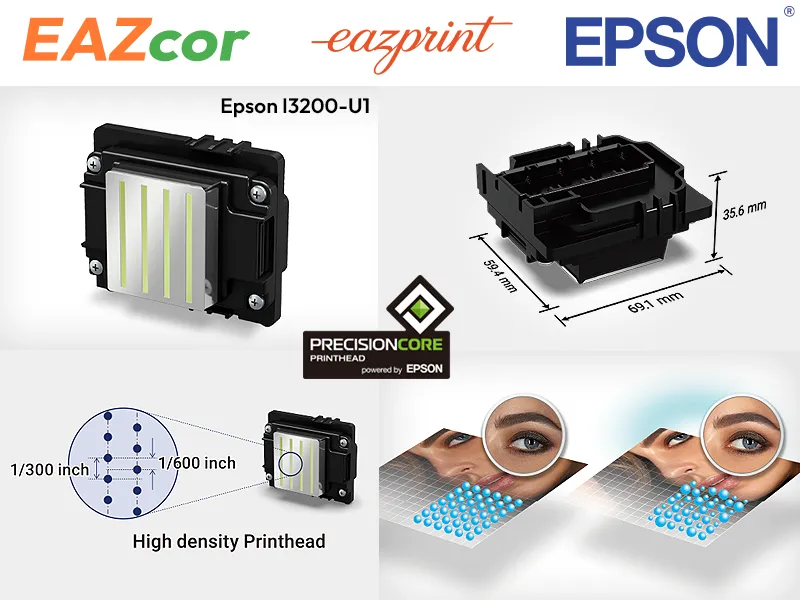

- Model：I3200-U1
- Ink Types：UV ink
- Size (width x depth x height) (mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5pl 43.2kHZ
- 3 gray release: 6,12.5pl 21.6kHZ
- 4 gray release: 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range: 5-7 mPa･s
Specifications
Printer size
- Length : 850 mm
- Width : 1160 mm
- Height : 880 mm
- weight : 150 kg
Paking size
- Length : 900 mm
- Width : 1200 mm
- Height : 1000 mm
- weight : 160 kg
Work environment
- Temperature: 40 – 100 ° C
- Humidity: 20 – 80%
Print resolution / Speed
- 4 pass : 12 m²/h
- 6 pass : 8 m²/h
- 8 pass : 7 m²/h
RIP software
- Flexi
- Maintop
- Riin
Power
- 220v for drawing
- 450v for front,middle and rear heading
Valtage
- 16A
- AC 100V ±10%
- AC 220V ±10%
- 50HZ ±1
- 60HZ ±1
Details

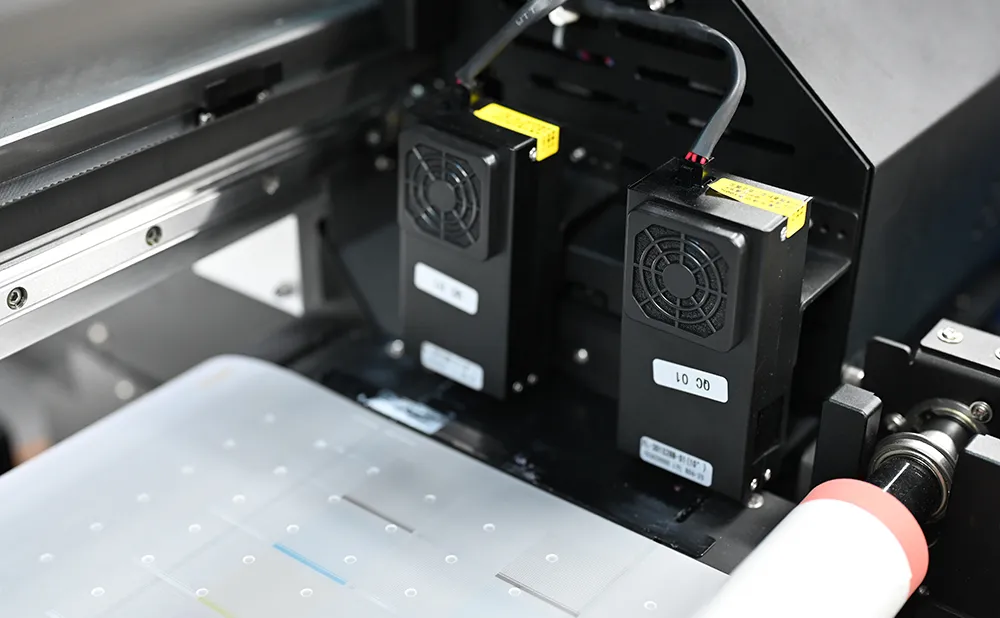

Air‑cooled UV light source

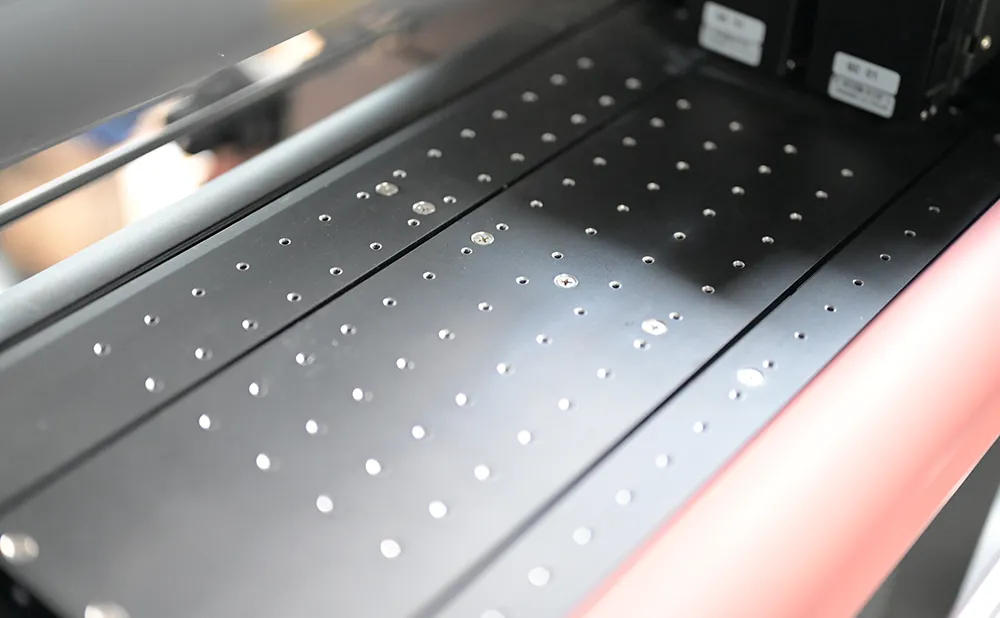

Lower dot‑matrix suction fixing plate

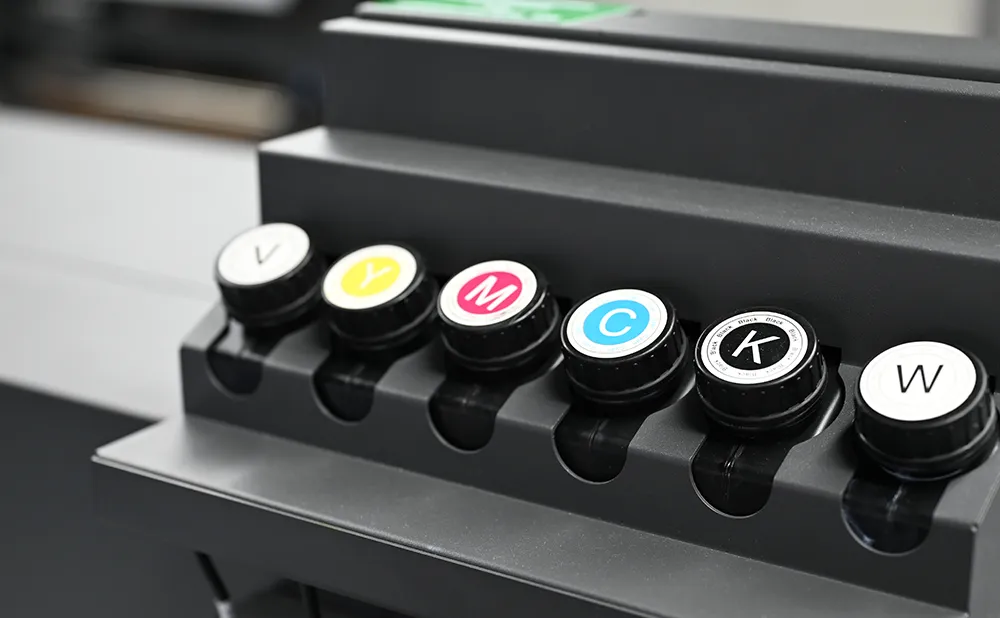

Light‑sealed fixed ink cartridge
Air‑cooled UV light source

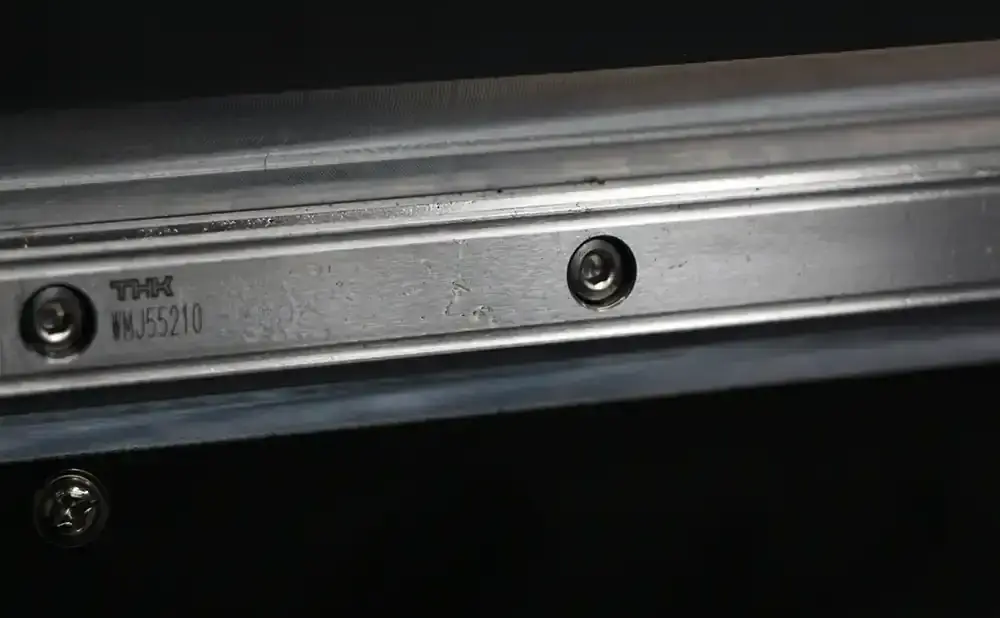

Standard Configuration of THK Linear Guides

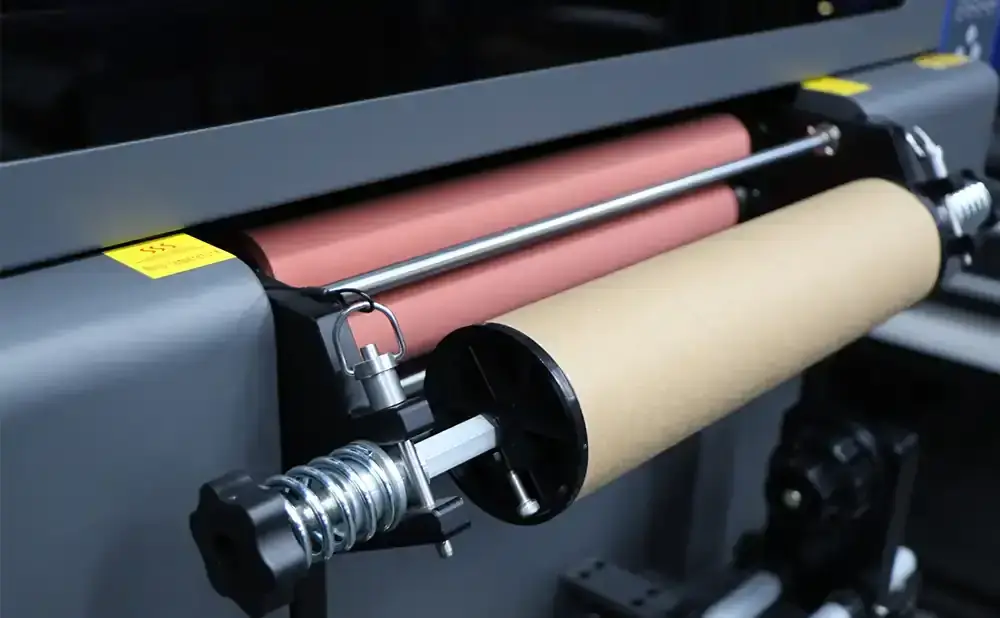

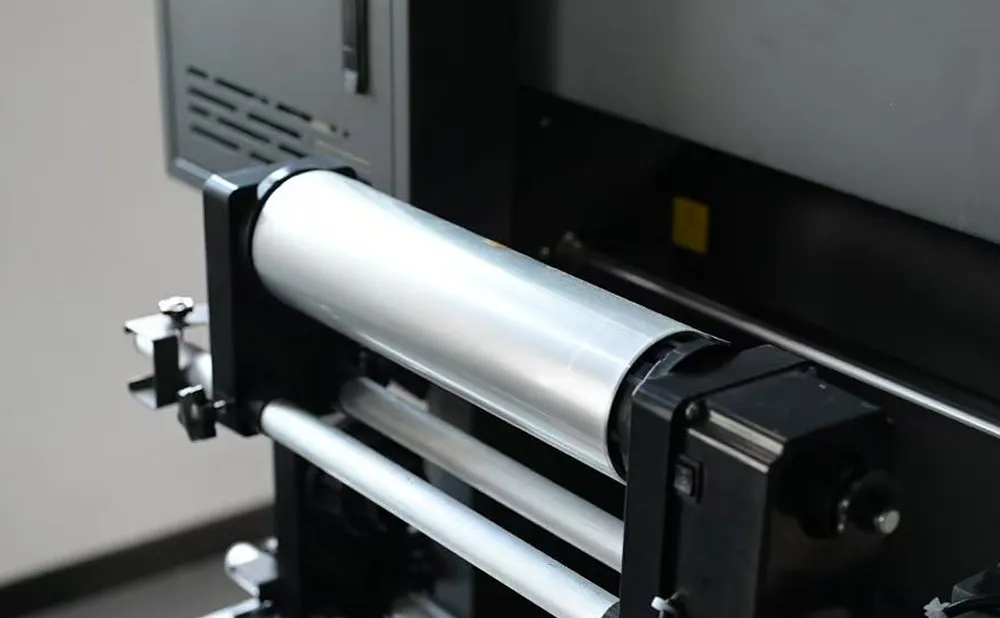

Electric Rear‑Feeding System
Consumables
EAZcor – UV ink
EAZcor – UV DTF AB film
