A roll‑to‑roll UV crystal label printer with a width of 600 mm, equipped with Epson printheads.

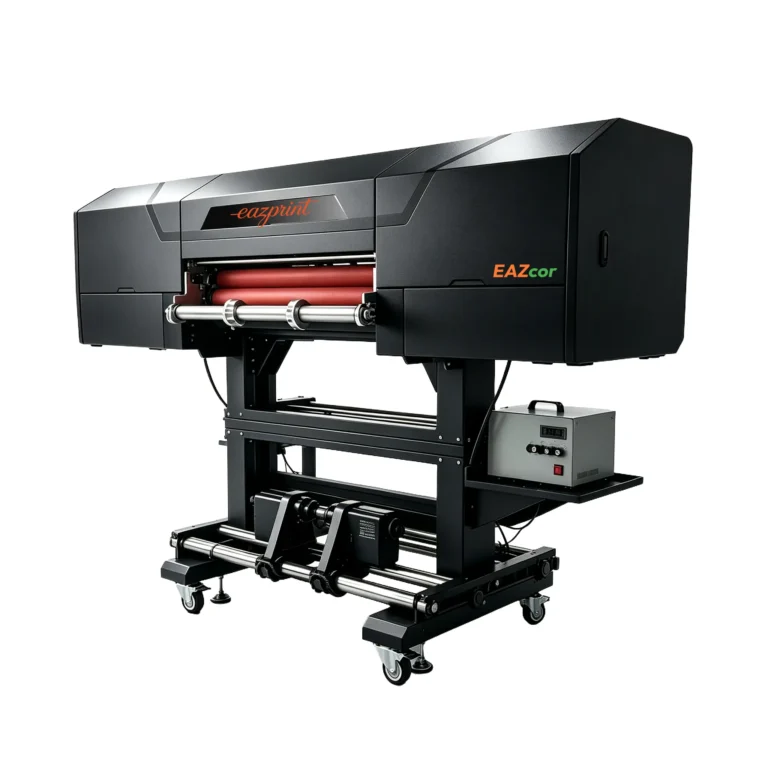

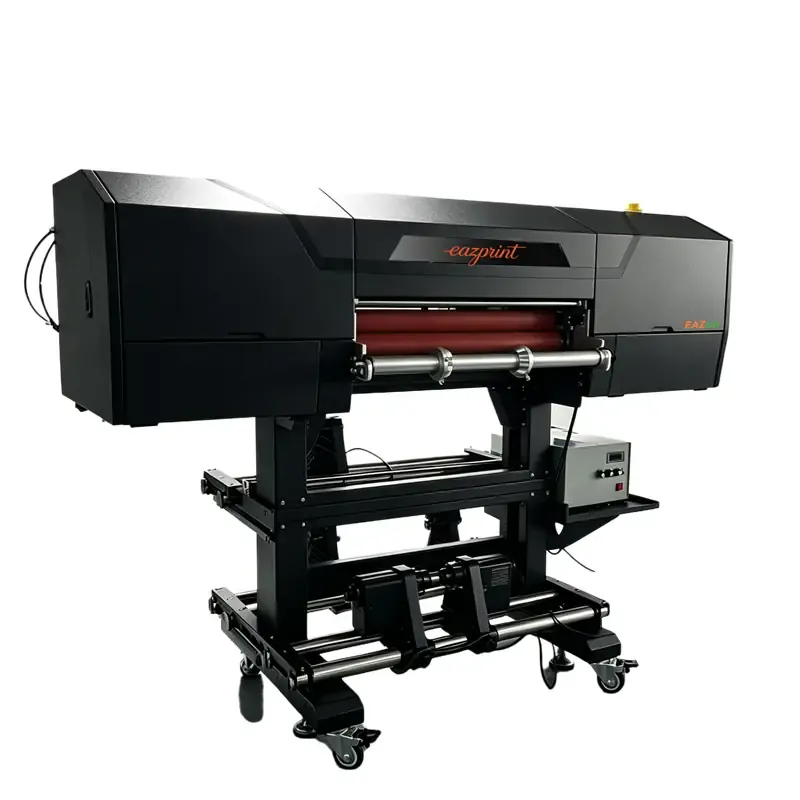

EZ – U600s UV printer
Ideal for mass‑producing crystal labels and other products
Configuration
- Product model : EAZcor U600s UV printer
- Print head : EPSON i3200-U1
- Number of print heads : 2
- Max print size : ≤ 600mm
- Printing resolution : Maximum 2400dpi
- Ink color : 6 colors ( CMYK+W+Varnis )
- Ink type : LED UV ink
- Max printing speed : 10 m²/h
- Ink supply method : Siphon, positive pressure ink bag
- Warranty : 12 months (Ink system, printheads and ink capping are not covered)
- International Shipping : DHL,FedEx,By Air,By Sea
Key features
- The surface plane can be transferred, and the transfer effect is good.
- Print nozzles to achieve white + CMYK + varnish multi-layer printing.
- Support hot stamping and hot silver, can achieve high gloss and high luxury custom effect.
- Printing with a sense of hierarchy, 3D relief, visibility, and tangibility.
- Efficient printing, stable output, cutting resistance, non-fading.
Unlimited creativity
Stick it casually with printing
Maximum print width
600mm
Simple operation
EAZcor's technical can do it
Colors
Cyan
Magenta
Yellow
Black
White
Varnish
Red
Green
Blue
Orange
Print head
- Model ：I1600-U1
- Ink Types ：UV ink
- Size(width x depth x height)(mm): 69.1x 59.4 x 35.6 mm
- Weight：80 g
- Nozzle Numbers：1600
- Nozzle pitch/nozzle row: 1/300 inch
- Nozzle Row: 4 rows
- Nozzle Resolution：300 npi /row 600 npi/2 rows
- Max. number of colour inks: 4 colours
- Effective print width：33.8 mm (1.33 inches)
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5 pl at 43.2 kHz
- 3 gray release: 6, 12.5 pl at 21.6 kHz
- 4 gray release:3.8, 6.2, 9.3 pl at 21.6 kHz
- Viscosity range: 5-7 mPa･s
- Positioning Mechanism：Reference hole
- Model：I3200-U1
- Ink Types：UV ink
- Size (width x depth x height) (mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5pl 43.2kHZ
- 3 gray release: 6,12.5pl 21.6kHZ
- 4 gray release: 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range: 5-7 mPa･s
Specifications
Printer size
- Length : 1785mm
- Width : 286mm
- Height : 559mm
- Weight : 80kg
Paking size
- Length :2100mm
- Width : 290mm
- Height : 559mm
- Weight : 100kg
Work environment
- Temperature: 40 – 100 ° C
- Humidity: 20 – 80%
Print resolution / Speed
- 4 pass : 8 m²/h
- 6 pass : 6 m²/h
- 8 pass : 5 m²/h
RIP software
- Flexi
- Maintop
- Riin
Power
- 220v for drawing
- 450v for front,middle and rear heading
Valtage
- 16A
- AC 100V ±10%
- AC 220V ±10%
- 50HZ ±1
- 60HZ ±1
Details
Inkjet nozzle plate heating system
The printhead heating system ensures that the printhead can still function normally in a low temperature environment, ensuring the flow of ink.
White ink mixer
The white ink agitator continuously stirs during the printing process, and the white ink circulation system effectively prevents the white ink from clogging the print head.
Cartridge shortage alert
The lack of ink alarm system can effectively remind staff to add ink in time to avoid ink shortages affecting the printing process.
Silent linear guide
Quiet operation and good stability. Low noise, high speed, extended service life and long-term operation without maintenance are all achieved by significantly reducing friction between silent rail sliders and improving grease retention.
Consumables
EAZcor – UV ink
EAZcor – UV DTF AB film
