Compact desktop DTF printer suitable for home and studio use, equipped with an Epson F1080 printhead, supporting 4-color printing. User-friendly for beginners, perfect as an entry-level model for personalized printing business.
EZ – A3 DTF printer
Desktop mini DTF printer with A3 printing size manufactured by Eazcor, compatible with various scenarios, and the Pro version supports hot stamping solutions.
Configuration
- Product model : EZ – A3 DTF
- Print head : Epson F1080 (xp600)
- Number of print heads : 1
- Max print size : ≤ 330mm
- Ink colors : 5 Colors (CMYK+W)
- Ink type : EAZcor ink
Key features
- Beautiful and affordable price, ultra-high cost-effectiveness.
- Stable operation, Fast printing speed.
- The operation system is simple and easy to understand.
- Clear printing, No ghosting, Clear and delicate, Non ink drift.
- Clear after printing,Bright colors, High degree of reduction.
Connection
Network cable
Maximum print width
330mm
Simple operation
EAZcor's technical can do it
Colors
Cyan
Magenta
Yellow
Black
White
Simple operation
Print head
- Model : F1080
- Ink Types : Water based ink
- Size(width x depth x height)(mm) : 84.9×57.2×42.6
- Nozzle Numbers : 1080
- Nozzle Row : 6 rows
- Max color/head : 4 colors
- Max. number of colour inks : 6 colours
- Nozzle Resolution : 180npi/1row 360npi/2row
- Max. number of colour inks : 6 colours
- Jet Freqency(kHz) : 46 (single dot), 11.52(multi dot)
- Ink Drops(pl) : 4.5-9-20-40
- Ink Viscosity(mPa.s) : 3~5
Specifications
Printer size
- Length : 790mm
- Width : 450m
- Height : 460mm
Work environment
-
Temperature: 20-30 ° C
-
Humidity: 45%-70%
Heating method
- preheater heating
- Printing bed heater heating
- After discharge heating
Print resolution / Speed
-
5 pass: 1.5m²/h (624×1800)
-
6 pass: 1.2m²/h (624×2160)
-
5 pass: 1m²/h (624×2520)
material
-
Metallic material appearance
-
Acrylic see-through window
Details
White Ink Stirring
Auto & Offline Printhead Cleaning

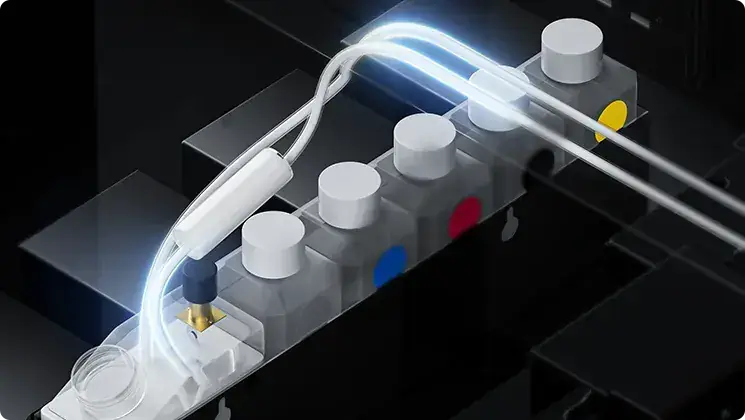

Auto White Ink Circulation
Special cutting machine for DTF film
DTF Production Consumables
EAZcor DTF ink
EAZcor White DTF hot melt powder
EAZcor Black DTF hot melt powder
EAZcor Standard DTF Film
EAZcor Special DTF film
